Outdoor Air Quality Monitor

Nanoenvi® EQ. Portable air quality monitor

Nanoenvi® EQ is an outdoor air pollution meter that allows the monitoring of multiple pollutant gases, particulate matter, VOCs, noise, temperature, humidity and meteorological parameters.

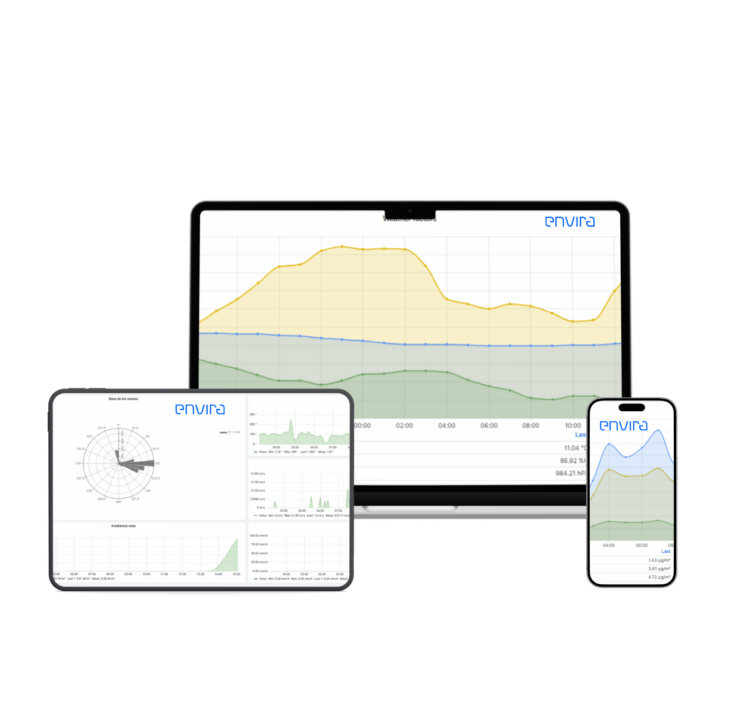

Thanks to its compact design and autonomy, the ambient air pollution monitor Nanoenvi® EQ enables wireless air quality measurement networks to be created using its sensors to collect data in places where there are no fixed air quality stations, or to complement them. It has its own platform in the cloud to visualize data in real time and with communication protocols that allow integration with third-party systems to facilitate decision-making.

FEATURES

Case and sensors

The Nanoenvi EQ is enclosed in a rugged ABS and polyurethane case with IP protection for outdoor use. This ensures that it performs well in both outdoor and industrial environments.

It is configurable to house gas, noise, temperature, humidity and pressure sensors as well as meteorological parameters.

Connectivity

Nanoenvi EQ stations are integrated into IoT networks via the usual M2M protocols (3G, 4G, Ethernet and WiFi and LoRa®...). This allows the integration of the stations to be adapted to different cases in terms of connectivity, making them Plug'n'Play devices.

Power Options

The Nanoenvi EQ has different power options, as per follows:

- Solar panel + Battery
- Power grid
- Power grid + Battery
- Power Over Ethernet

Available settings

Low Emission Zone

Monitoring of air quality and noise parameters affected by urban traffic, ideal for Low Emission Zones (LEZ).

Temperature, humidity and atmospheric pressure sensors

CO, NO & NO2 sensors

PM particles (1, 2.5 and 10)

VOC sensors

Noise (dB)

Request your Quotation

Ports & Airports

Monitoring the parameters that influence the pollution of large infrastructures such as ports or airports.

Temperature, humidity and atmospheric pressure sensors

CO, NO, NO2 & SO2 Sensors

PM particles (1, 2.5 and 10)

VOC sensors

Request your Quotation

Construction

Monitoring of particles generated by renovation, construction and general works.

Temperature, humidity and atmospheric pressure sensors

PM particles (1, 2.5 and 10)

Request your Quotation

Agriculture

Monitoring of parameters directly affecting crops and plantations.

Temperature, humidity and atmospheric pressure sensors

PM particles (1, 2.5 and 10)

CO2 (ndir) Sensors

VOC sensors

Meteorological sensors (wind speed & direction + solar radiation + rainfall)

Request your Quotation

Air Quality

Monitoring of all parameters exclusively affecting air quality.

Temperature, humidity and atmospheric pressure sensors

CO, O3, NO2 & SO2 Sensors

PM particles (1, 2.5 and 10)

CO2 (ndir) Sensors

VOC sensors

Request your Quotation

WHO Recomendations

Monitoring of the parameters recommended by the WHO for outdoor air quality.

Temperature, humidity and atmospheric pressure sensors

O3, NO2 & SO2 Sensors

PM particles (1, 2.5 and 10)

Request your Quotation

SPECIFICATIONS

Power

100-240VAC @ 50-60Hz (PGD / PGC) | PoE ++ (IEEE 802.3bt) | Solar panel (included)

Max. Consumption

30W (PGC / SP) | 60W (PGD) | 55W (PoE)

Average Consumption

2 W

Battery

96Wh LiFePO4 (PGD / SP)

Autonomy

24x7

Environmental operating conditions

- 20 ~ 55ºC / 0 ~ 99%RH (without condensation)

Case material

ABS, polyurethane, aluminium and stainless steel

IP Protection

IP65

Max. Weight

2Kg (PGC / PoE) | 3,5Kg (PGD / SP)

Solar panel weight with bracket

3,2Kg (SP)

Dimensions

500x260x200 mm

Solar panel dimensions

560x350x25 mm

Communications

2G/3G | 3G/4G/LTE | Ethernet | WiFi | LoRaWAN

Pollutant gases

NO, NO2, O3, SO2, H2S, CO, CO2 & VOCs

Particulate Matter

PM1, PM2,5y PM10

Other Parameters

Temperature, relative humidity, atmospheric pressure, noise, rainfall, irradiance, wind speed, wind direction, etc.

Acquisition period

Minutal

Sending Period

From 1 to10 minutes

Sending Period (LoRaWAN variant)

From 2 to 15 minutes

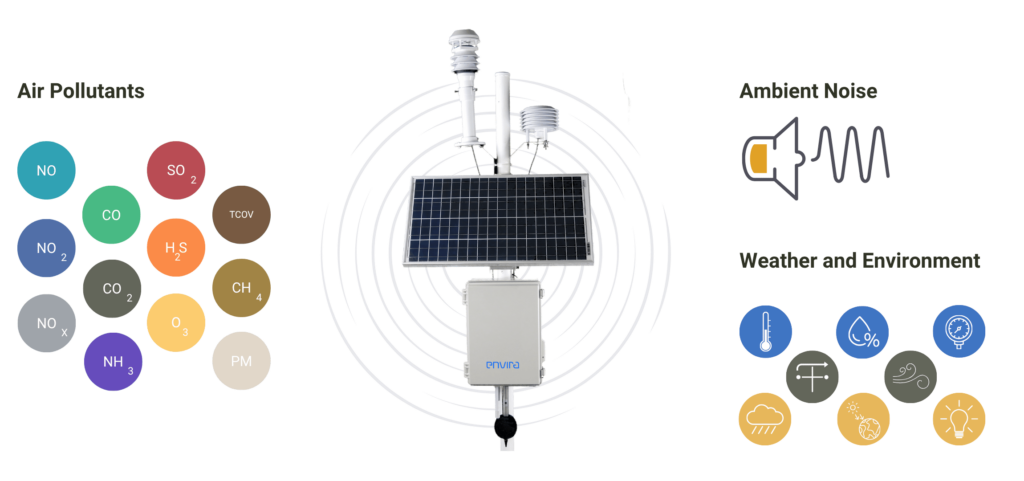

COMPONENTS

Nanoenvi EQ can be configured with the following gas, environmental and meteorological sensors

Sensors (NO2, NO, NOx, O3, SO2, H2S, CO, CO2)

4-in-1 meteorological sensor (wind speed, wind direction, solar radiation and rainfall)

Temperature, humidity and pressure sensor

Noise sensor

VOC sensor
