AUTOMATIC WEATHER STATIONS (AWS)

Nanoenvi MET

Nanoenvi® MET is a compact portable weather station with extensive configuration options.

Automatic and modular weather stations Nanoenvi MET provide automated real-time data collection of atmospheric and climatic conditions without direct human intervention and can measure parameters such as temperature, relative humidity, atmospheric pressure, wind speed and direction, solar radiation or precipitation, among others.

Real-time data

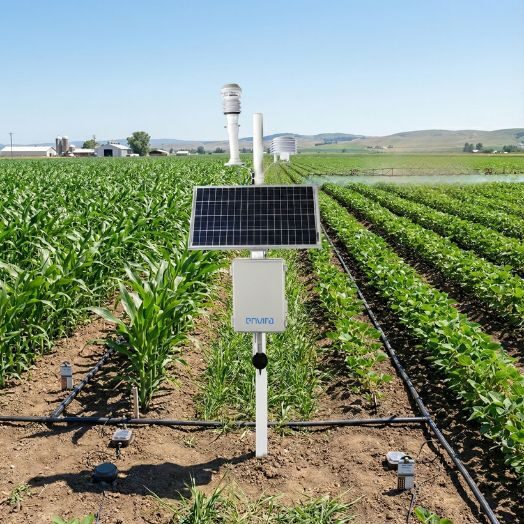

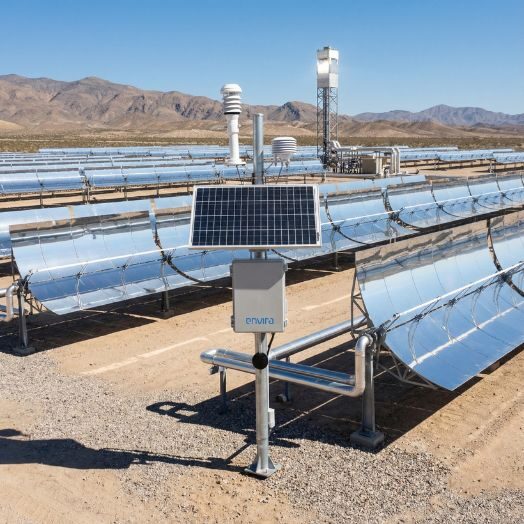

The stations provide real-time weather information that enables informed decision-making in a wide range of sectors, including agriculture, energy, transport, construction and others.

Remote monitoring

These stations allow weather conditions to be monitored in remote or difficult to access locations without the need for a constant physical presence on site.

Mobility and flexibility

Being portable and compact in size, these mini-stations can be easily deployed in different locations according to the specific monitoring needs of the moment.

FEATURES

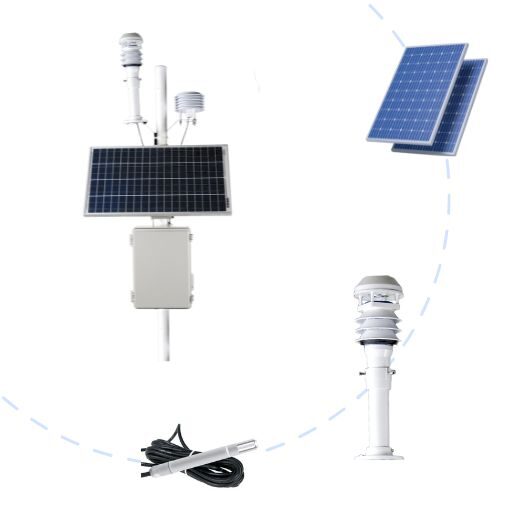

Fully modular

The Nanoenvi MET weather stations have the advantage of being fully configurable and can be fitted with specific sensors to measure the meteorological parameters required for each project: temperature, relative humidity, absolute pressure, solar radiation, rain, wind speed and direction...

Manufactured in ABS and polyurethane, compact and lightweight, these devices are designed to remain outdoors for years. The casing of the device is provided with IP protection for outdoor use, guaranteeing the correct operation of the electronics even in the most adverse outdoor conditions.

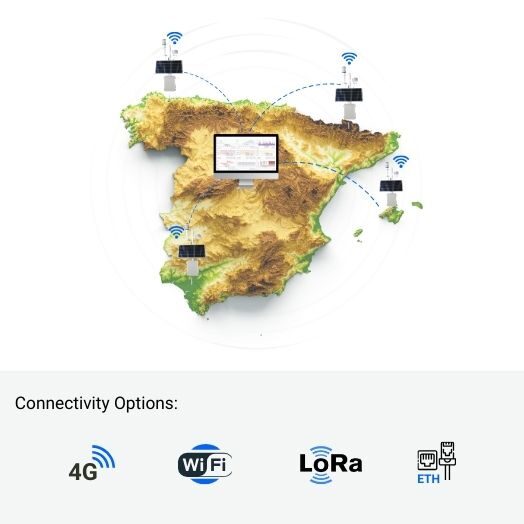

Weather station networks

Nanoenvi MET handhelds allow the networking of weather stations thanks to various M2M communication mechanisms such as 3G, 4G, Ethernet and Wifi.

They also offer the possibility to choose between different power supply options:

- Solar panel + battery
- Mains connection
- Mains + battery

And like all the devices in the Nanoenvi family, the Nanoenvi MET devices are Plug'n Play.

SPECIFICATIONS

POWER

100-240VAC @ 50-60Hz (PGD / PGC) : PoE ++ (IEEE 802.3bt) : Solar panel (included)

MAX. CONSUMPTION

30W (PGC / SP) | 60W (PGD) | 55W (PoE)

AVERAGE CONSUMPTION

2 W

BATTERY

96Wh LiFePO4 (PGD / SP)

AUTONOMY

24x7

ENVIRONMENTAL OPERATING CONDITIONS

- 20 ~ 55ºC / 0 ~ 99%RH (no condensation)

CASE MATERIAL

ABS, polyurethane, aluminium and stainless steel

IP PROTECTION

IP65

MAX. WEIGHT

2Kg (PGC / PoE) | 3,5Kg (PGD / SP)

SOLAR PANEL WEIGHT WITH BRACKET

3,2Kg (SP)

DIMENSIONS

500x260x200 mm

SOLAR PANEL DIMENSIONS

560x350x25 mm

CONNECTIVITY

2G/3G | 3G/4G/LTE | Ethernet | WiFi

ACQUISITION PERIOD

30 Seconds

DISPATCH PERIOD

From 1 to 10 mins

WIND SPEED

0-70m/s, resolution 0.1m/s, accuracy ±3%.

WIND DIRECTION

0-359°, resolution 1°, accuracy ±3°

RAINFALL

0 - 200mm/hr, resolution 0.1mm, accuracy ±5%.

SOLAR RADIATION

0 - 2000W/m2, resolution 0.1W/m2, accuracy ±5%.

AIR TEMPERATURE

-40ºC - +86ºC, resolution 0.1º, accuracy ±0.5ºC

RELATIVE HUMIDITY

0 - 100%, resolution 0.5%, accuracy ±3%

ATMOSPHERIC PRESSURE

100 - 1100hPa, Resolution 0.1hPa, Accuracy ±1hPa
